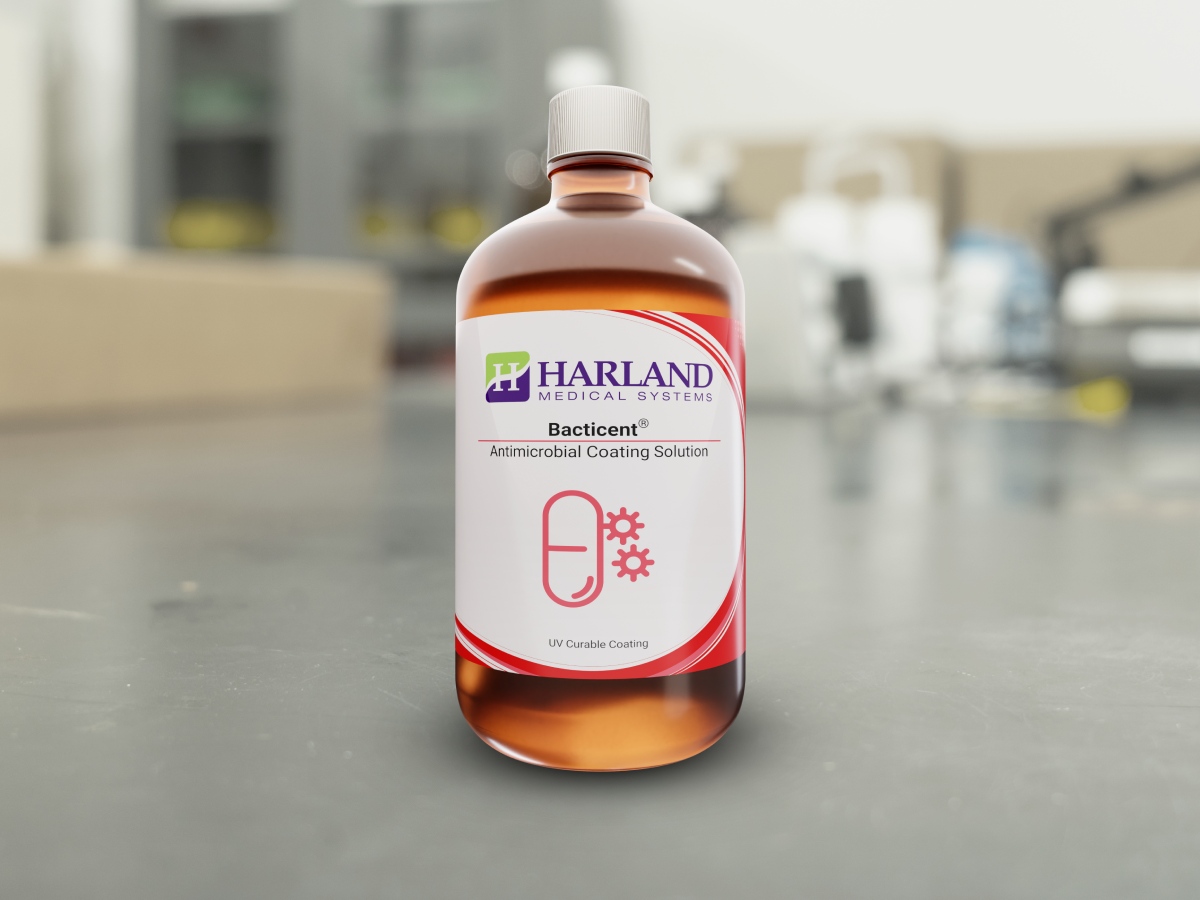

Bacticent®

Antimicrobial Coating

Bacticent Antimicrobial Coating provides a broad spectrum of efficacy with a well-characterized drug, making it a major differentiator for your medical device. The heat-cured co-polymer matrix provides controlled delivery of chlorhexidine diacetate right from the surface of the device and directly to the tissue most susceptible to infection. Elution times can be engineered to schedule infection-fighting compound delivery per the specific needs of your application—from as short as a few hours to over 60 days. Adaptable for a variety of antimicrobial drugs, compatible with most relevant device substrates and custom tailored to meet or exceed your required elution and drug-effectiveness timelines, Bacticent is an ideal choice for indwelling catheters, central venous catheters, dialysis catheters and other devices designed to combat gram-positive or gram-negative bacteria.

Features of Bacticent

Tailored Performance

Elution or coating profile can be tailored to meet your specific performance needs across a number of substrates

Combine with Lubricity

May be combined with a lubricious layer (such as Harland Lubricent® hydrophilic coating solution) for increased patient comfort

Multiple Compounds

Can be adapted to deliver a variety of antimicrobial compounds, including chlorhexidine, silver, rifampin, clindamycin and others

Coating or Imbibing

Specifically formulated to be employed as a coating or imbibed directly into the molecular matrix of your device’s substrate

Click graph above to enlarge.

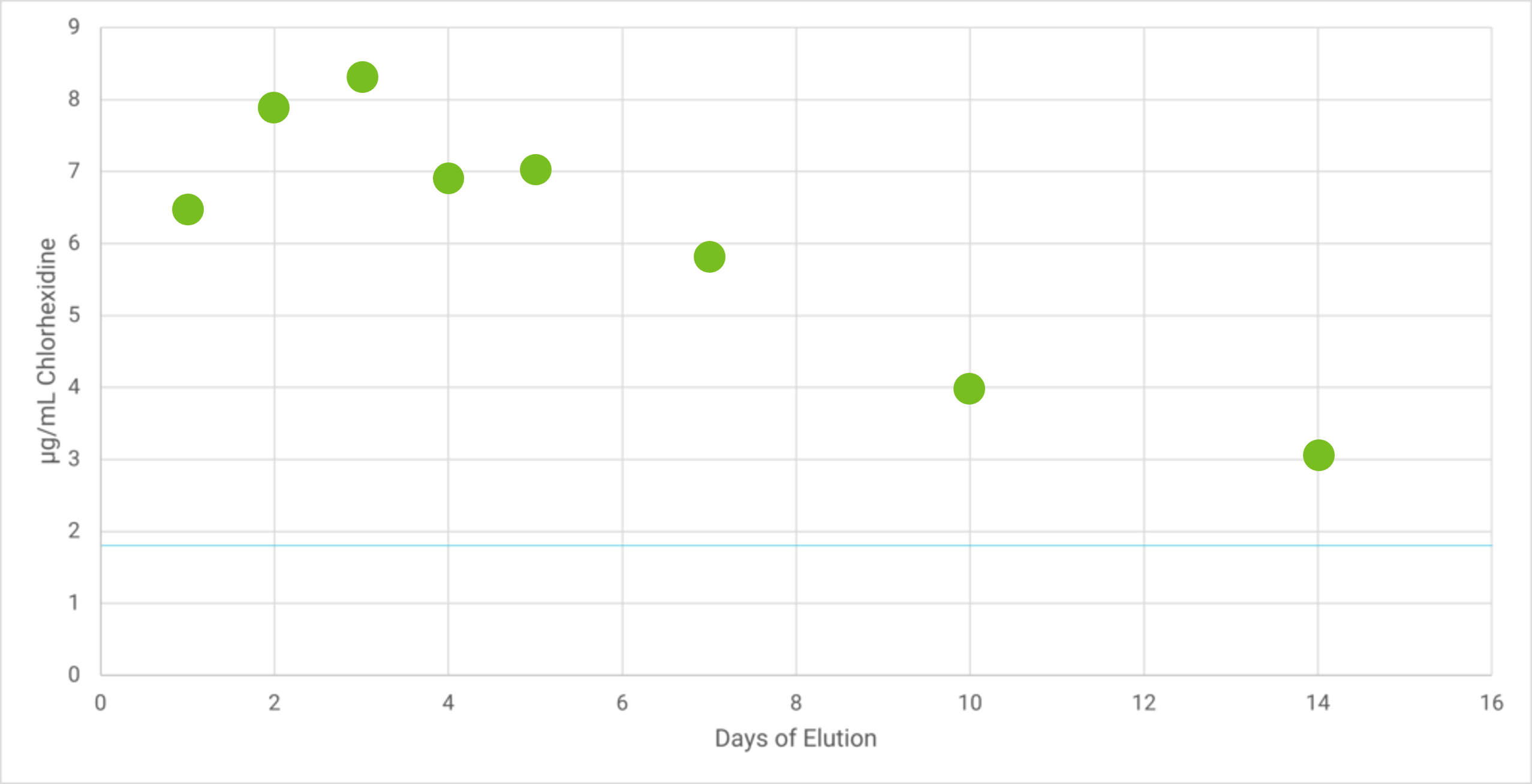

Bacticent 14-Day Elution

Methodology:
Titanium substrates were coated with a Bacticent AM130 Antimicrobial Chlorhexidine Acetate Coating and were incubated in 10 mM phosphate buffered saline at 37°C with gentle agitation (~30-50 RPM). The buffer was exchanged at the intervals seen in the corresponding graph, and the elution solutions were analyzed by HPLC for chlorhexidine concentration.

Analysis:
The Bacticent AM130 Antimicrobial Coating exhibited sustained elution of chlorhexidine sufficient to be effective against a variety of microbes (eg. S. Aureus, E. Coli, E. Faecalis) over a period of 14 days as indicated by the MIC line for S. Aureus.

Biocompatibility

Benefits of Bacticent

The Antimicrobial Market

At any given time, the CDC estimates that one in of every twenty-five hospitalized patients is affected by a Healthcare Associated Infection (HAI), and that preventing these infections could save an estimated $30 billion in medical costs, as well as the discomfort, loss of time and income, and shortened lifespan of countless patients. One of the most effective ways to combat HAIs is with antimicrobial coating applications, but matching a device to a surface treatment that’s optimized for its substrate and the best anti-infective compound can be a daunting process for your in-house team.

Tailored Performance Process

Partnering with Harland involves a stage-gated process tailored specifically to the requirements of your device application. We’ll work with you to understand the infection-reduction and elution-profile demands of your device, and then develop a Bacticent program customized to those needs. Bacticent’s flexible development process allows Harland to engineer an antimicrobial delivery system compatible with most relevant device substrates and capable of utilizing a variety of antimicrobial compounds like chlorhexidine or rifampin. A customized Bacticent program results in a more effective device application—one that may ultimately save lives.

Combine with Lubricity

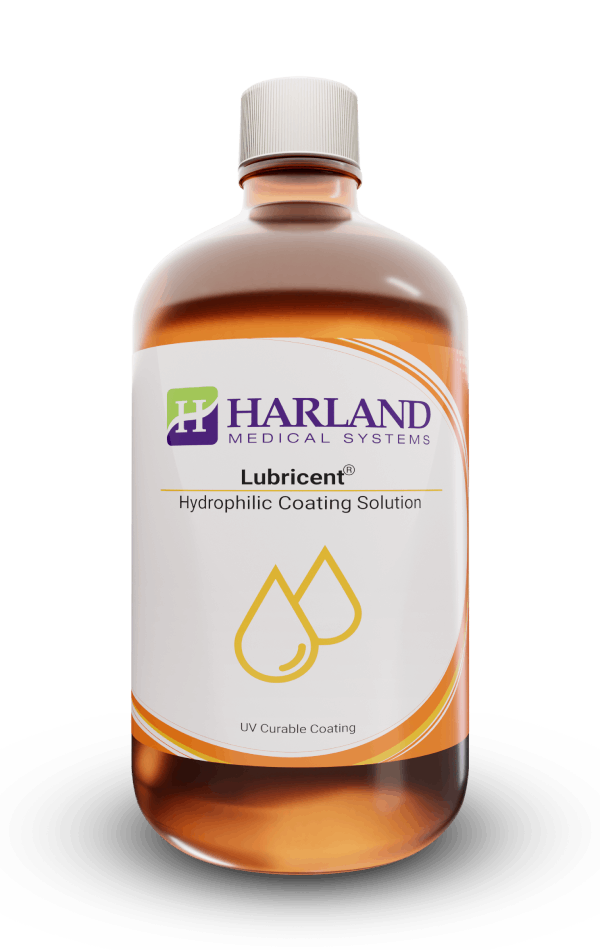

For increased patient comfort and additional bacteria adhesion resistance, Bacticent may be combined with a lubricious layer such as Harland’s Lubricent hydrophilic coating.

Microscope In Use
Harland Medical Systems – Bottle Lab Lubricent

Coatings 360

Every medical device is unique and bringing it to market is a major challenge. That’s why Harland’s Coatings 360 approach tailors a complete answer to your distinct product coating needs and goals. We’re the industry’s only comprehensive source for high-performance coatings, equipment and production coating services—everything you need to coat your medical device on time and within budget. We provide it all in-house, so when you partner with us, you have one resource for everything coatings.

Learn More
Coatings 360 Logo

White Paper: 10 Essentials for a Hydrophilic Coating Program

10 essential elements to consider when selecting a coating program for medical devices such as catheters, guidewires, introducers and other devices.
