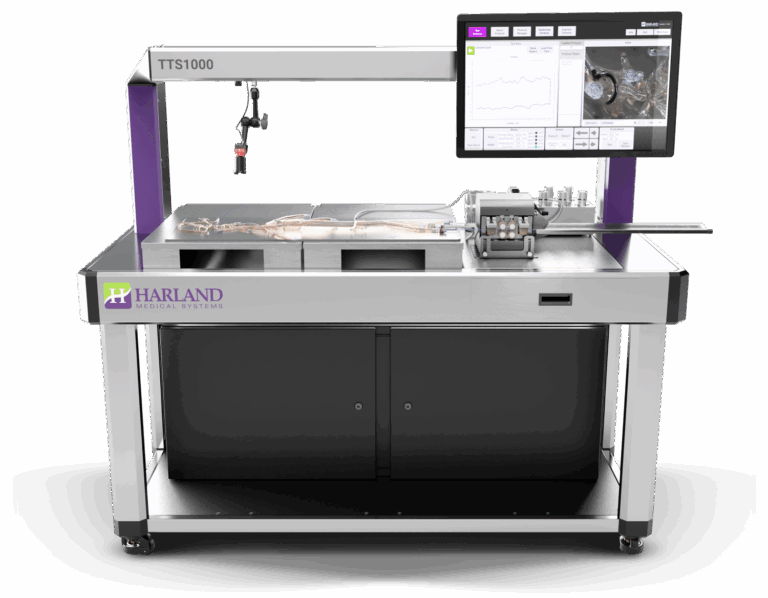

The TTS1000 is a cutting-edge system designed to evaluate the trackability of medical devices as they navigate through tortuous, simulated anatomies.
It features a magnetic work surface with a grid of threaded holes for exceptional customization and precise adjustments.
Removable top plates reveal a temperature-controlled 92cm x 65cm water bath, enabling both submerged and tabletop testing.
Swappable magnetic plates with a grid of threaded holes provide unmatched customization and precise work surface adjustments.
Video and data are captured and displayed in parallel, with fast replay, export, and reporting tools, and on-demand access to previous test results at any time.

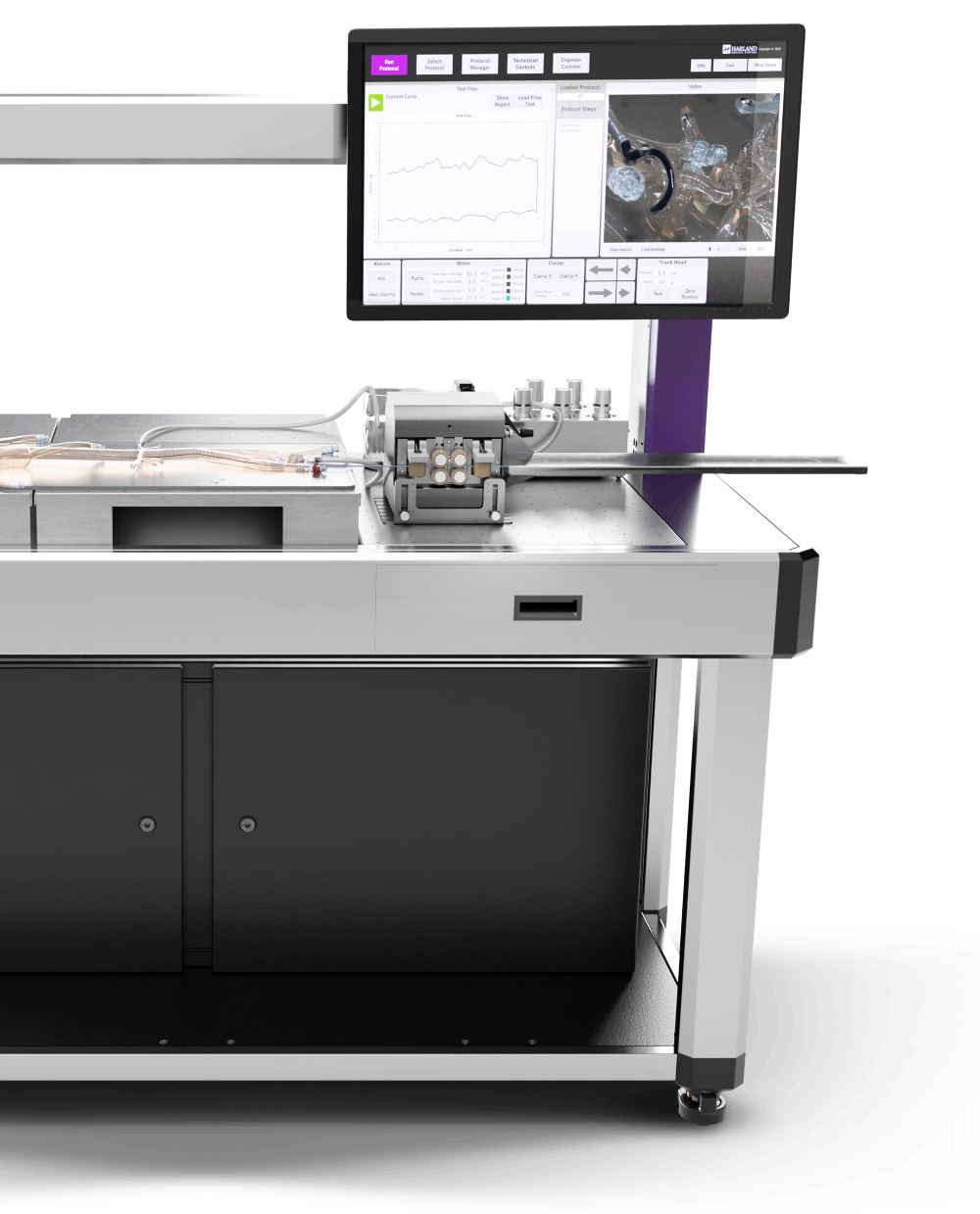

Utilizing multiple track heads simultaneously ensures accurate simulation of your device in action.
An overhead camera provides precise visualization, allowing you to overlay multiple tests and cycles while exporting synchronized data and video. The TTS1000 delivers unmatched flexibility and accurate for medical device testing.
Track models, roller heads, tubing, and other accessories are available to give you a customizable simulation of a tortuous anatomy.
Devices are inserted into a track model that mimics the desired path within the simulated anatomy and positioned between the rollers on the track head.
Heated circulating water, maintained at 37°C (98.6°F) to replicate blood temperature, flowing from the water bath below. Once the water is flowing and the device is precisely positioned, testing can begin.
Friction force data is displayed live on-screen and can be overlaid with multiple samples for comparison. Test data files are easily exportable via Ethernet or USB flash drive. The TTS1000 includes a built-in touch screen for creating test protocols, executing tests, and generating customizable reports.
